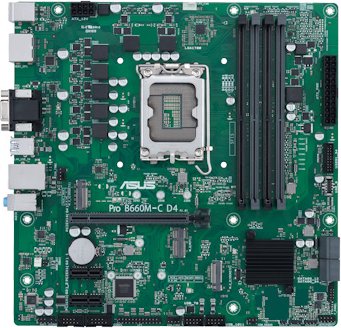

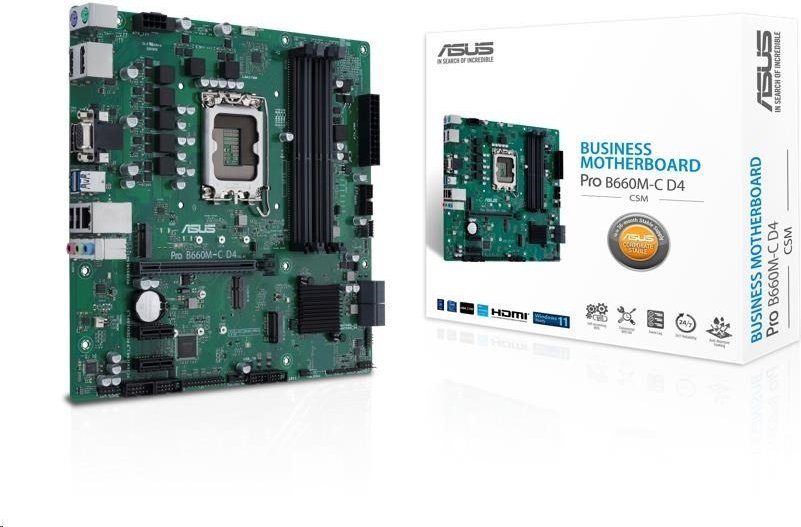

ASUS MB Sc LGA1700 PRO B660M-C D4-CSM, Intel B660, 4xDDR4, 2xDP, 1xHDMI, 1xVGA, mATX

Chipset: Intel B660 Chipset
Rozměrový formát: microATX (24.4cm x 24.4cm)
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA1700
Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: XMP
Grafická karta: (na základě procesoru)
*2 x DisplayPort
*1 x HDMI port
*1 x D-Sub port
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
Síťová karta: 1 x Intel 1Gb Ethernet
Rozšiřující sloty:
*1 x PCIe 4.0/3.0 x16 slot
*2 x PCIe 3.0 x1 slots
RAID řadič: RAID 0/1/5/10
SATA: 4 x SATA 6Gb/s ports
M.2: 2 x M.2 slots
USB:
*Interní:
*1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Externí:
*2 x USB 3.2 Gen 1 ports (2 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
Interní porty:
*Fan and cooling related
*1 x 4-pin CPU Fan header
*2 x 4-pin Chassis Fan headers
*Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*Storage related
*2 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
*USB
*1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Miscellaneous
*1 x Clear CMOS header
*1 x Chassis Intrude header
*2 x COM Port headers
*1 x Front Panel Audio header (AAFP)
*1 x COM debug header
*1 x LPT header
*1 x Mono-out header(with Amp IC)
*1 x M.2 slot (Key E)
*1 x SMBUS header
*1 x Speaker header
*1 x 10-1 pin System Panel header

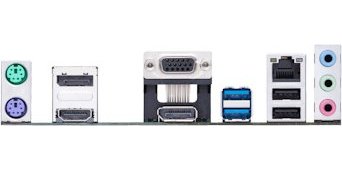

Externí porty:
*2 x USB 3.2 Gen 1 ports (2 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*2 x DisplayPort
*1 x HDMI port
*1 x D-Sub port
*1 x Intel 1Gb Ethernet port
*3 x Audio jacks
*1 x PS/2 keyboard (purple) port
*1 x PS/2 mouse (green) port
BIOS: 128Mb Flash ROM
