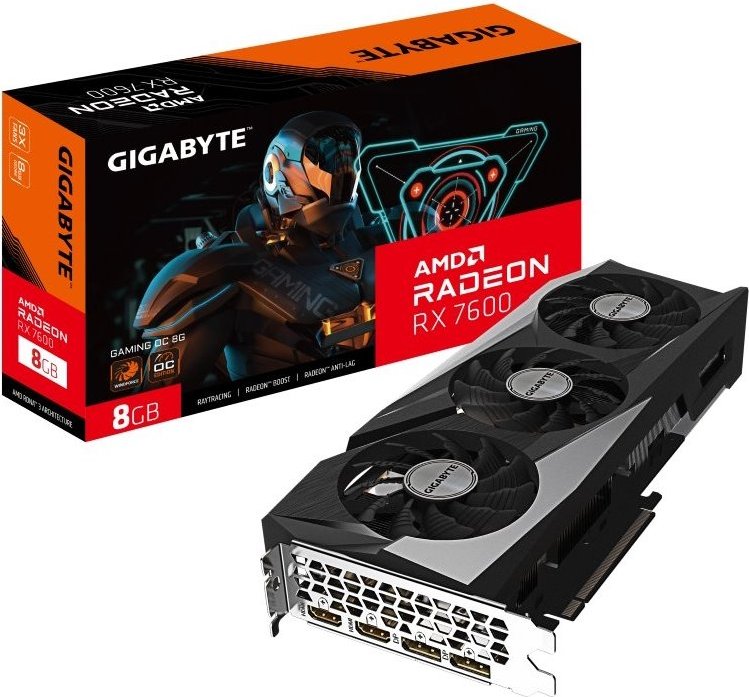

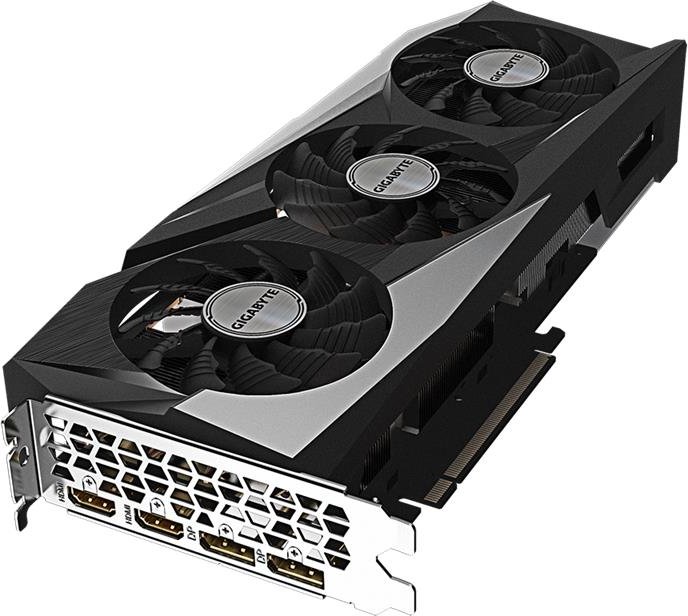

GIGABYTE Radeon RX 7600 GAMING OC 8G, RX 7600, 8GB GDDR6X, 2xDP, 2xHDMI

Graphics Processing
Radeon™ RX 7600
Core Clock
Boost Clock* : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock* : up to 2355 MHz (Reference card: 2250 MHz)
Stream Processors
2048
Memory Clock
18 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=282 W=115 H=50 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
550W
Power Connectors
8 pin*1
Output
DisplayPort 1.4a *2
HDMI 2.1a *2
Accessories
Quick guide
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
