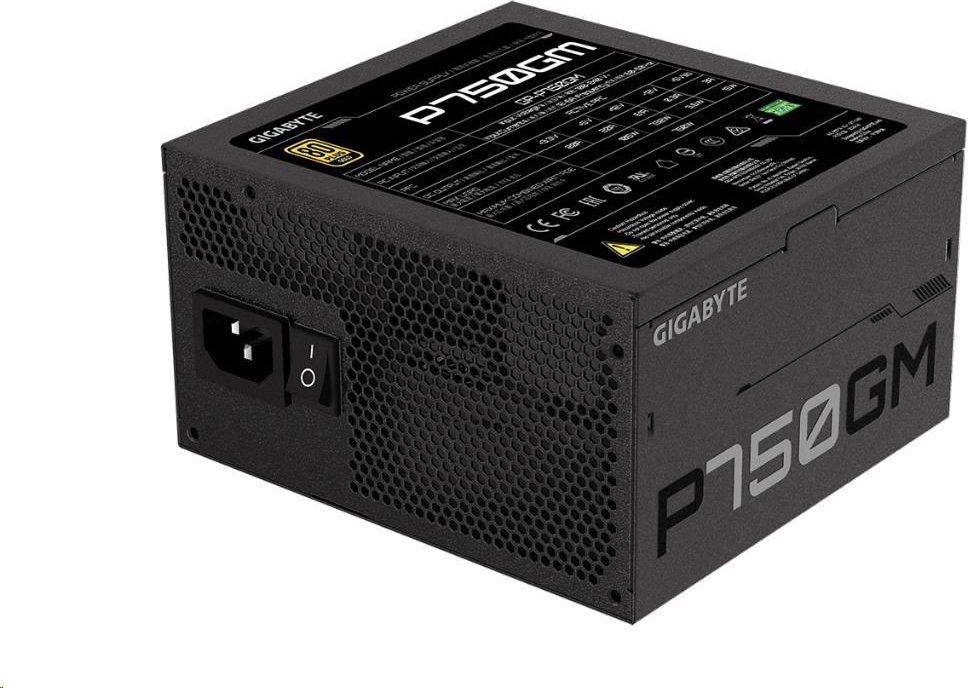

Gigabyte zdroj P750GM, 750W, 80plus gold, modular, 120 mm fan

Kód: 27129
Part No.: GP-P750GM
Dostupnosť: zvyčajne do 24hodin
Výrobca: GIGABYTE
86,90 € s DPH
84,50 € s DPH / 70,42 € bez DPH
845

P750GM

  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact size
  • 5 years warranty (Adjusted according to different regions)

TECHNICAL SPECIFICATIONS

Model P750GM
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 12-6A
Input Frequency 50-60 Hz
Output Capacity 750W
Dimension D150 x W140 x H86 mm
Fan Type 120mm Hydraulic Bearing fan
80+ Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-500ms
Hold up Time >16ms
Cable Type Flat, All black
Connectors ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 : 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm *1

Popis produktu

P750GM

  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact size
  • 5 years warranty (Adjusted according to different regions)

TECHNICAL SPECIFICATIONS

Model P750GM
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 12-6A
Input Frequency 50-60 Hz
Output Capacity 750W
Dimension D150 x W140 x H86 mm
Fan Type 120mm Hydraulic Bearing fan
80+ Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-500ms
Hold up Time >16ms
Cable Type Flat, All black
Connectors ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 : 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm *1
